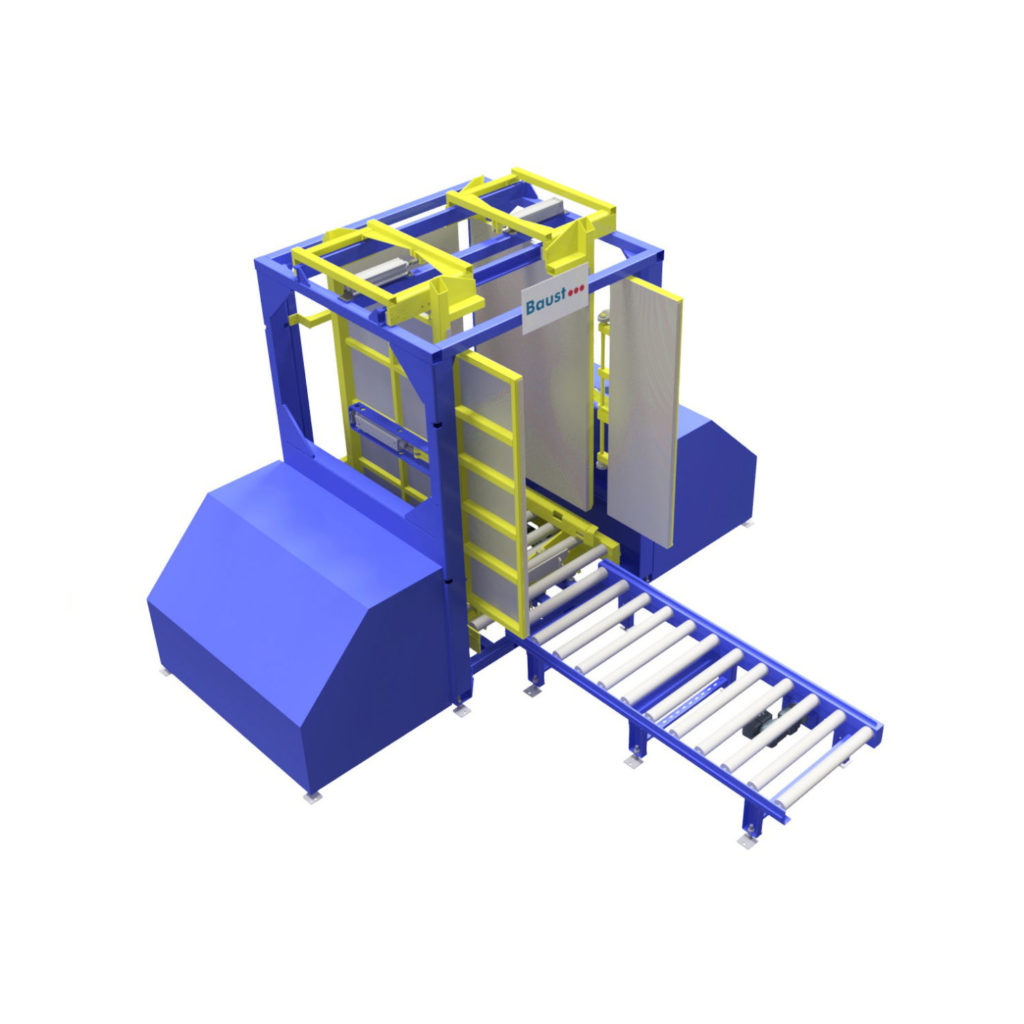

Centering station AZ 3000

The Inline niche centering solution

The AZ 3000 centering station aligns the load safely and efficiently from three sides. The dead-end layout makes the Inline system ideal for niche locations.

Specifications
  • performance: 30 – 50 cycles/h
  • control mode: automatic control
  • loading and unloading: forklift/conveying line
  • clamping walls: electrically driven
  • power supply: 4 kVA – 16A 230/400 V
  • dimensions (L x W x H in mm): 4400 x 4330 x 3500
Pallet loading
  • total weight up to 1000 kg
  • standard pallet (W x L in mm): 800 x 1200
  • height incl. pallet: 2000 mm
  • goods: e.g. cardboard boxes, boxes, Big-Bags, bottles or pallet stacks
  • overhang tolerance for each side: +- 50 mm
Options
  • other pallet widths
  • height of goods > 2000 mm
  • load > 1000 kg

The Inline niche centering solution

The AZ 3000 centering station aligns the load safely and efficiently from three sides. The dead-end layout makes the Inline system ideal for niche locations.

Centering of loads stacked on pallets or entire stacks of empty pallets is always necessary if irregularities in the layer pattern or packing scheme occur during palletizing or transport. A low tolerance for stacking and outer contours is an important prerequisite for a safe and trouble-free process, especially in automated further processing and storage. With the AZ 3000 centring station, the load is aligned both lengthwise and crosswise. The pallet enters the machine from the front and is positioned. The two side walls and the doors close and compress the load from three sides. The pallet is then transported back to the front to the
take-off conveyor.

Up to 50 cycles in one hour are possible. A safety fence with access control ensures the required safety.
