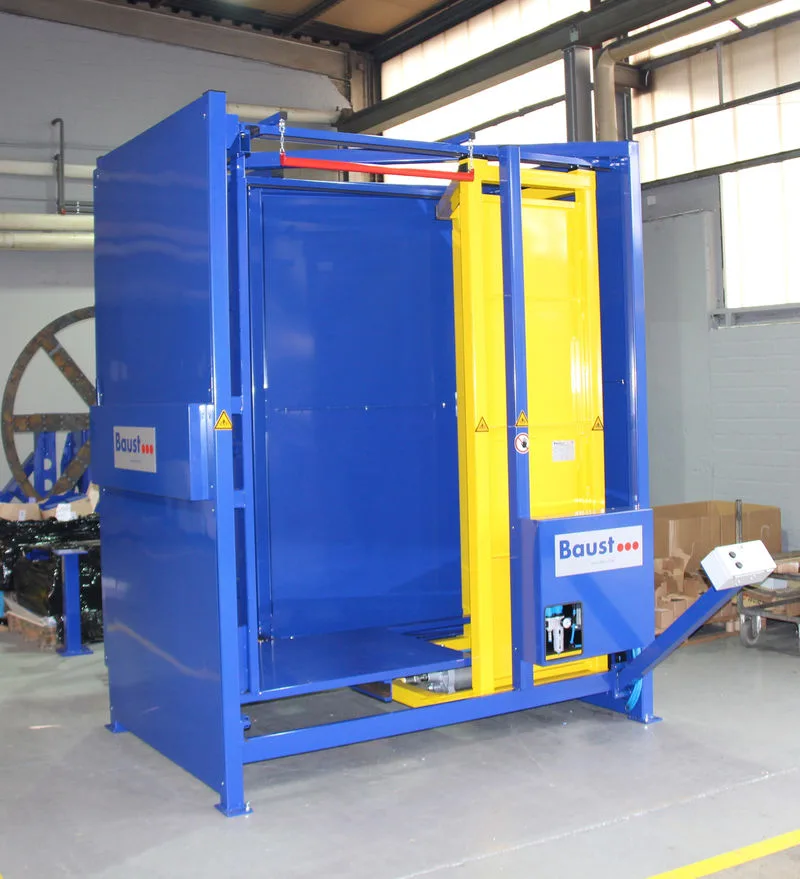

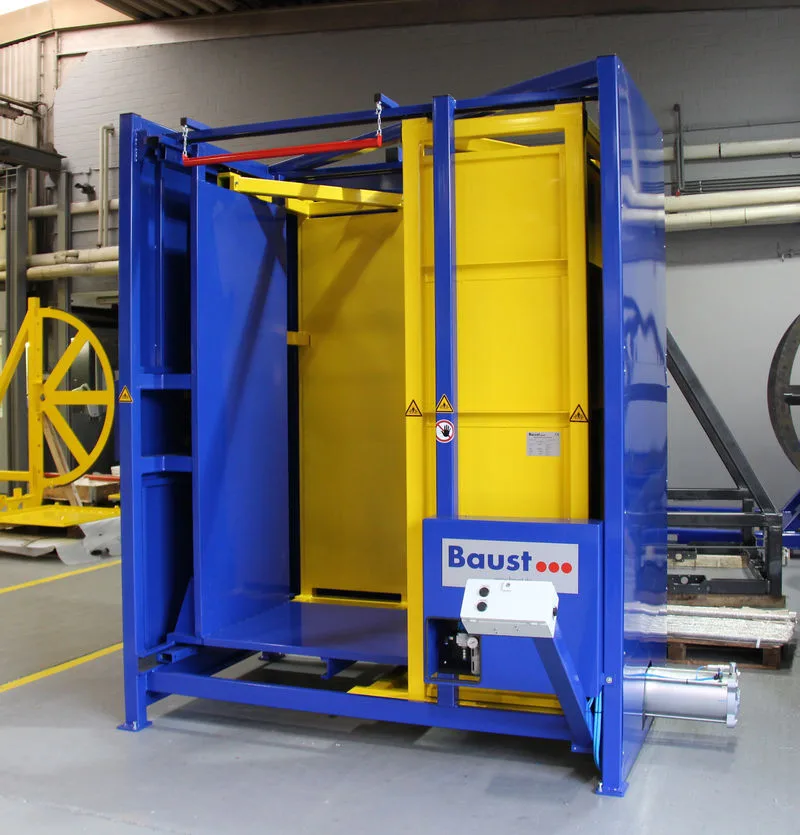

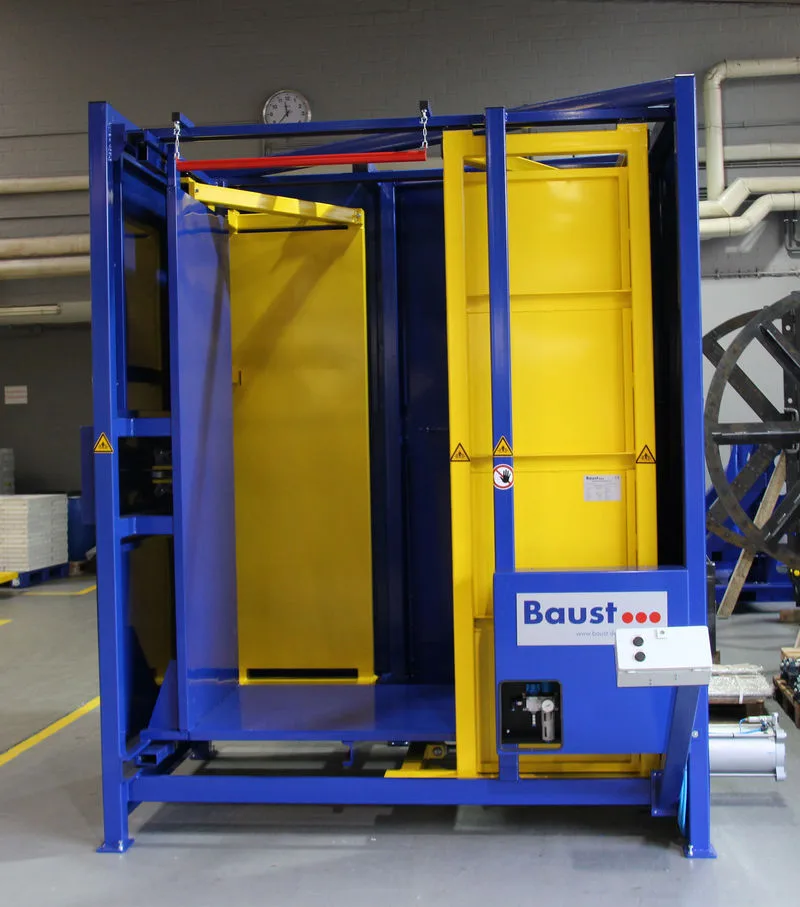

Pallet aligner PA-EURO | Pallet stack straightener

Pallet squaring becomes fast and easy

A common issue in storage and logistic areas: Uneven pallet stacks occur because of transportation and sloppy stacking. Those stacks are difficult to move with a forklift and not suitable for the integration in logistic systems or pallet magazines. Work accidents and operating troubles are the potential consequences of this problem. The solution: With the Baust pallet aligner the straightening of pallet stacks becomes gentle, fast and easy.

  • suited for stacks with up to 15 pallets
  • reduces the risks of accidents and operating troubles
  • gentle pallet aligning – lengthwise and crosswise
  • available for different types of pallets
  • useful plug & play solution for easy assembly
  • loading via pallet truck or forklift
specifications
  • performance: 30 cycles/h
  • dimensions (L x W x H in mm): 2788 x 2950 x 2940
  • clamping wall: electrically driven
  • feeding & discharging: electric pallet or forklift truck
  • control mode: dead man´s system
  • power supply: 4 kVA – 16 A 400 V
pallet data
  • dimensions (W x L in mm): 800 x 1200
  • max. stack height: 2160 mm (15 Euro-pal.)
  • max. stack weight: 375 kg (15 Euro-pal.)
  • material: wood, plastic, aluminium
options
  • other pallet widths
  • goods height > 2160 mm
  • loading on floor level by manual pallet truck

Pallet aligning with Baust’s PA-EURO

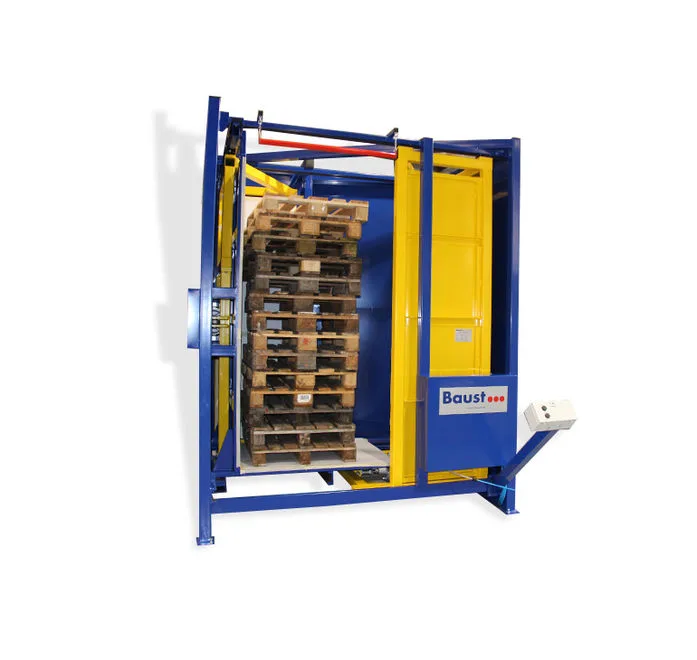

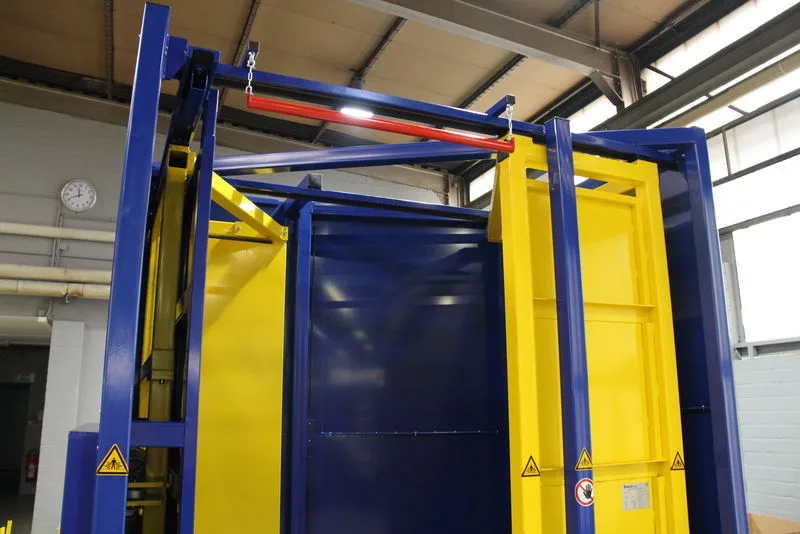

With the pallet aligner PA-EURO Baust provides an useful plug & play machine for your company. An operator loads the squaring machine via electrical pallet truck or forklift. Then he pushes the button – and instantly a clamping wall moves out and evenly presses the whole pallet stack against the opposing side wall. The stack is then aligned through the rear wall from behind. In this way pallet stack straightening in lengthwise and crosswise direction is just a matter of seconds. After the process the operator can unload the pallet aligner. Thanks to the innovative electrical control, all process steps run in sequence in dead man’s mode without the operator having to press different buttons. Contact us for more information about pallet straightener and our processes.
