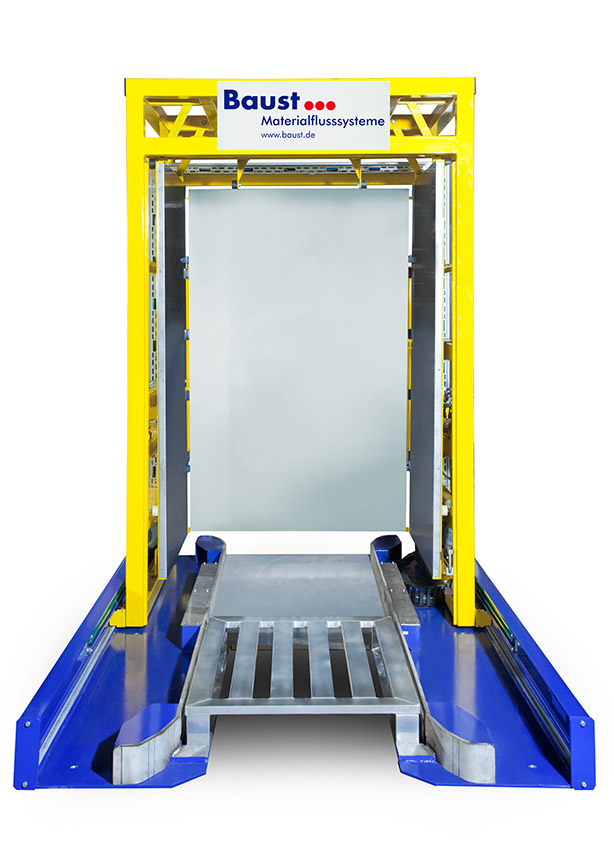

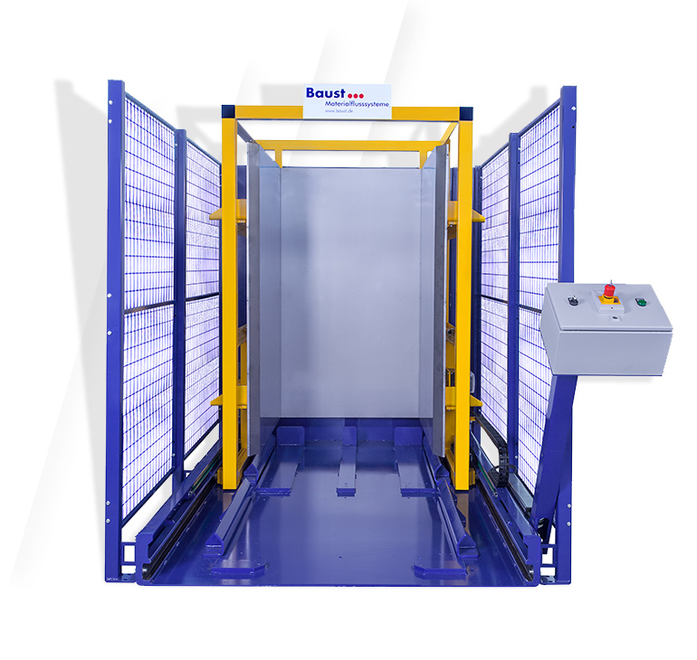

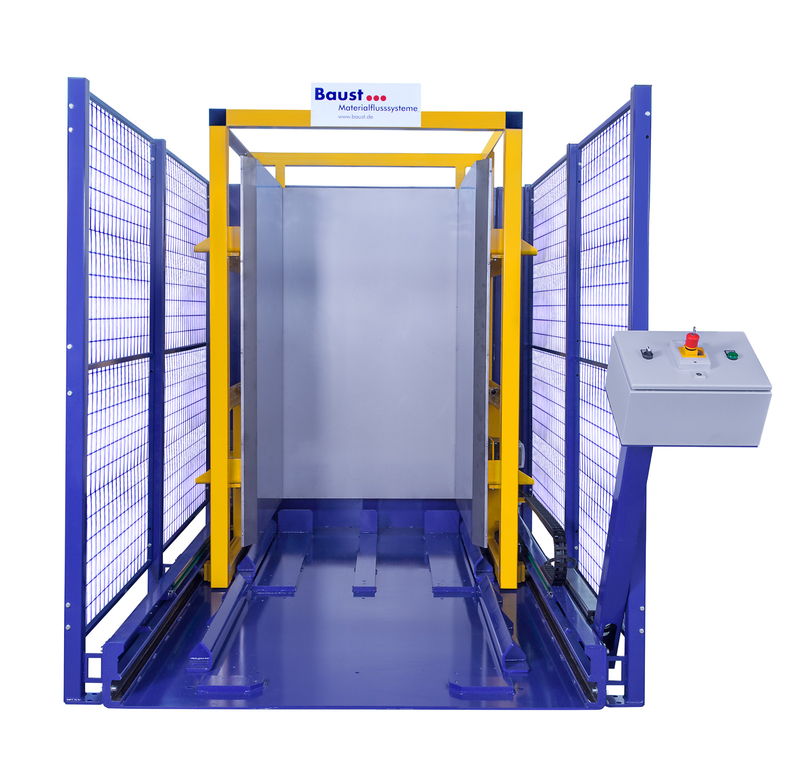

Pallet changer PW 1000

The basic pushing method pallet changer

The PW 1000 ensures a precise and smooth operation where exchange of pallets for large and robust goods is frequently necessary. Its particular attributes are the Plug & Play construction and the simple operation.

  • simplest pushing method
  • Stand-alone unit
  • Plug & Play operation
  • no tilting, rotating or clamping of the goods
  • loading and unloading via pallet truck
  • performance: 10 – 30 changes/h
  • dimensions (L x W x H in mm): 2980x1760x2240
  • side walls: fixed & manually adjustable
  • feeding & discharging: manual or electric pallet truck
  • control mode: dead man´s system
  • power supply: 4 kVA – 16A 400 V
  • machine weight: approx. 1500 kg
Pallet loading
  • total weight up to 1000 kg
  • standard pallet (W x L in mm): 800 x 1200
  • max. height incl. pallet: 2000 mm
  • goods: e.g. cartons, drums or boxes
  • overhang tolerance for each side: 50 mm
  • other pallet sizes
  • goods height > 2000 mm
  • stainless steel contact parts
  • lateral guides

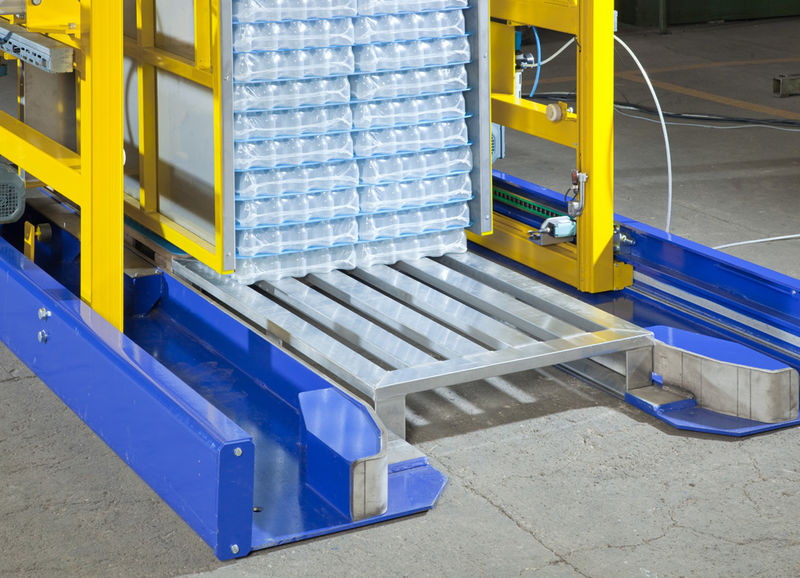

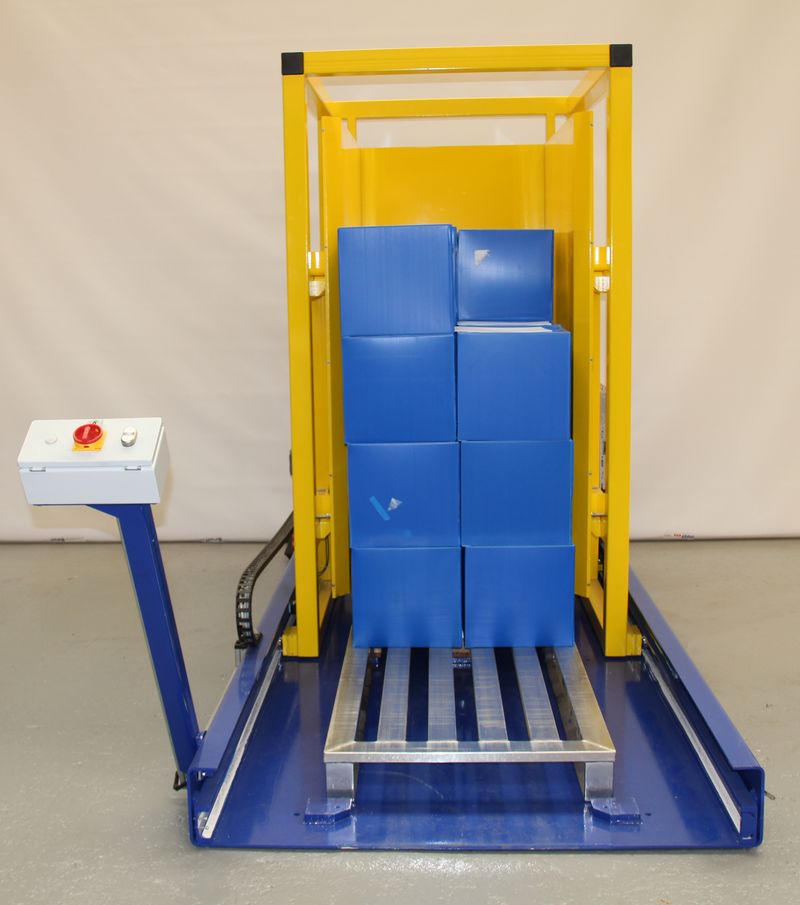

Pallet changing with the PW 1000

A particular feature of the PW 1000 is the simplicity of its pushing method. The exchange procedure begins with the loading of the changer with the empty and then full pallet using a pallet truck. The employee then instigates the change procedure via the PW 1000 control panel. The load which is secured from 3 sides is then pushed by the frame to the empty pallet. Both pallets are removed after the frame has returned to its original position. Further advantage: The PW 1000 is a standard pallet changer that can be installed single-handedly.

We recommend the pallet changer PW 1000 for between 10 and 30 changes per hour.
