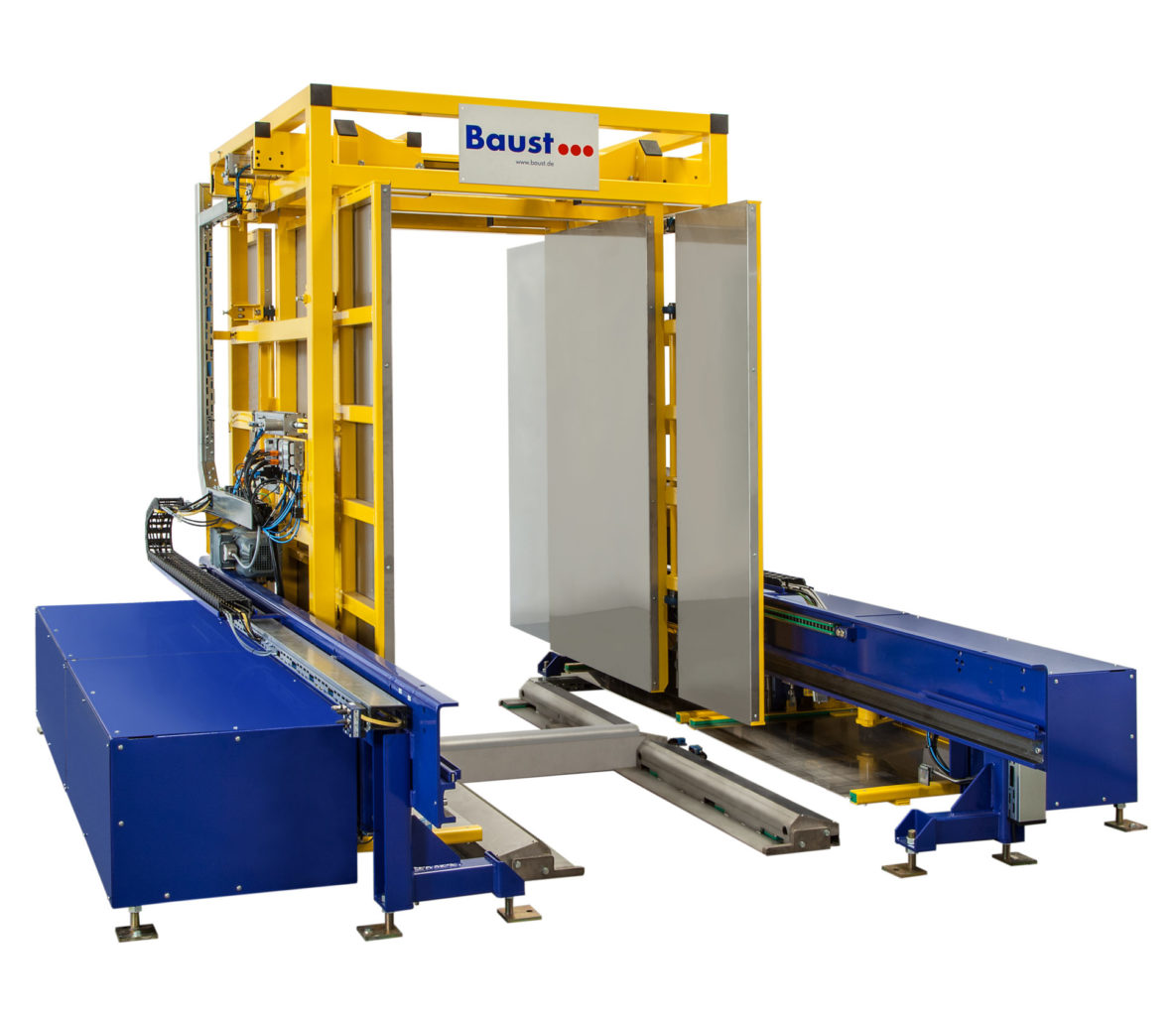

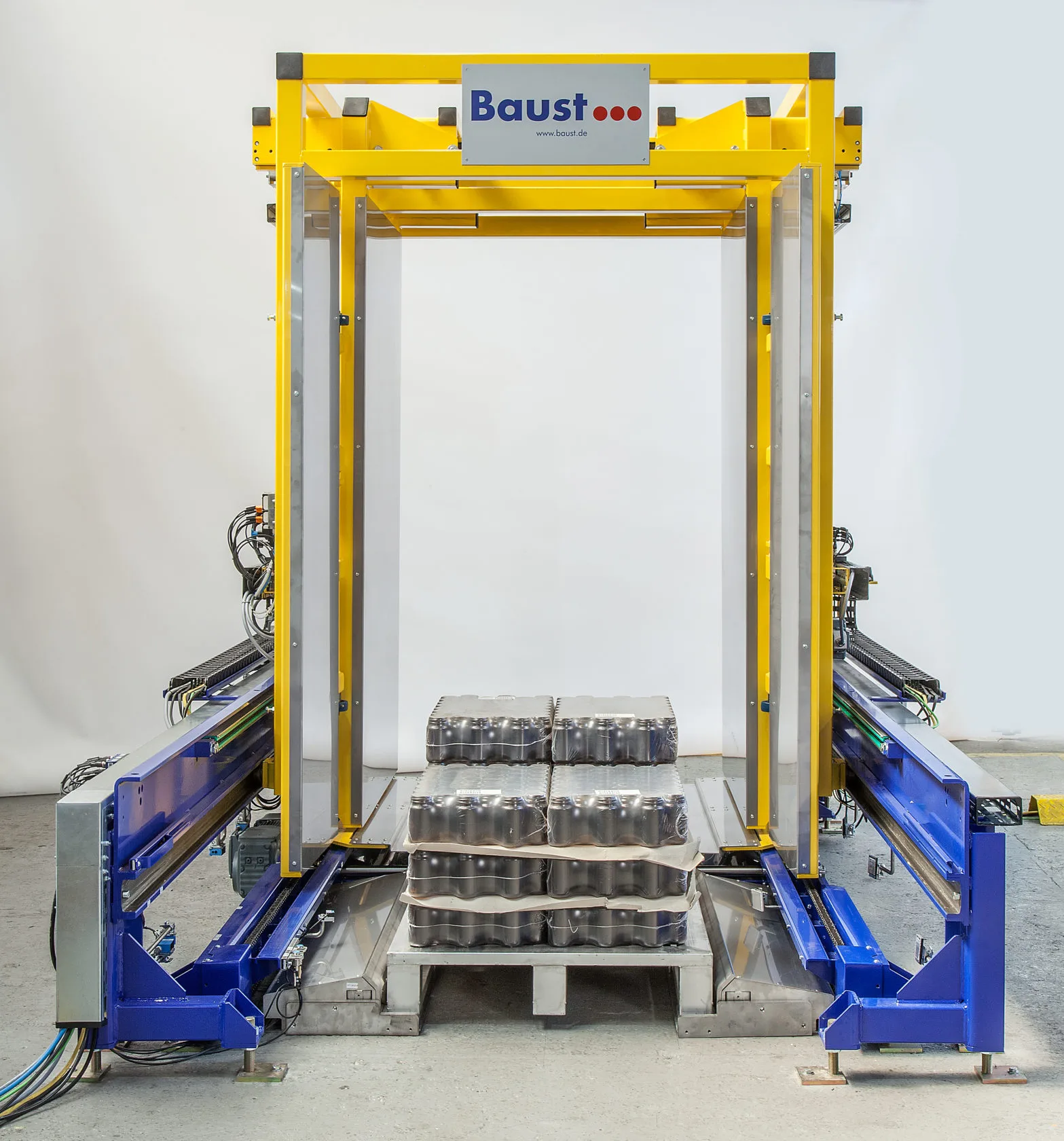

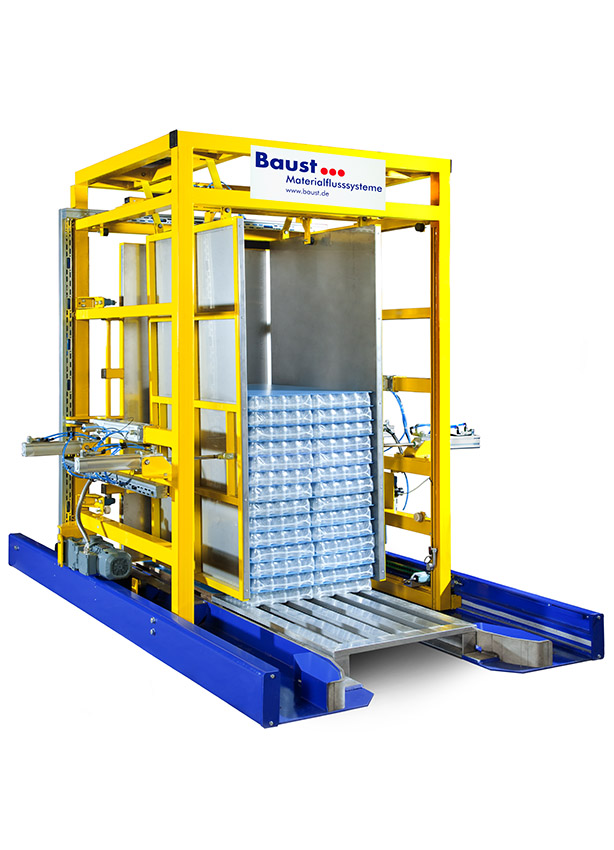

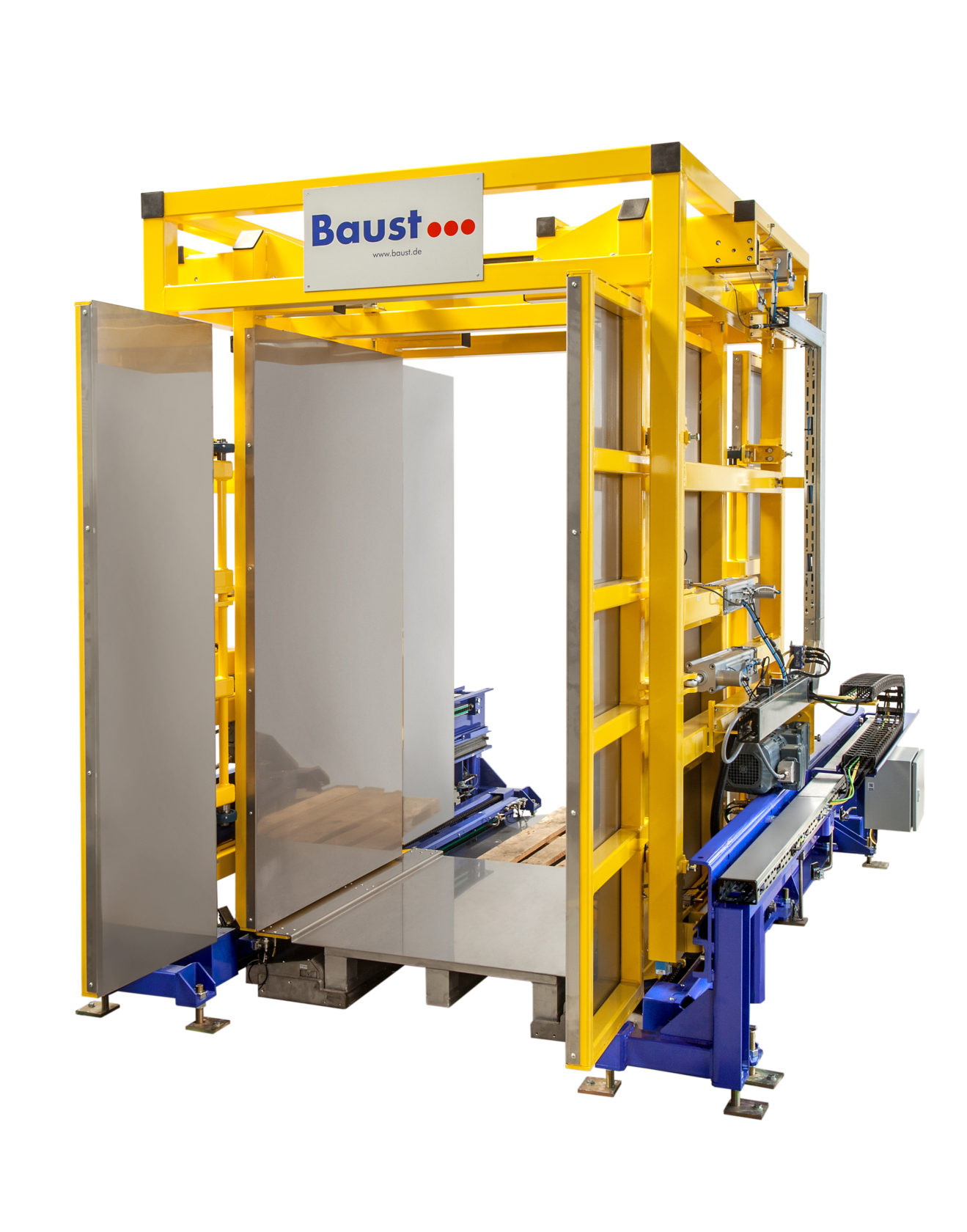

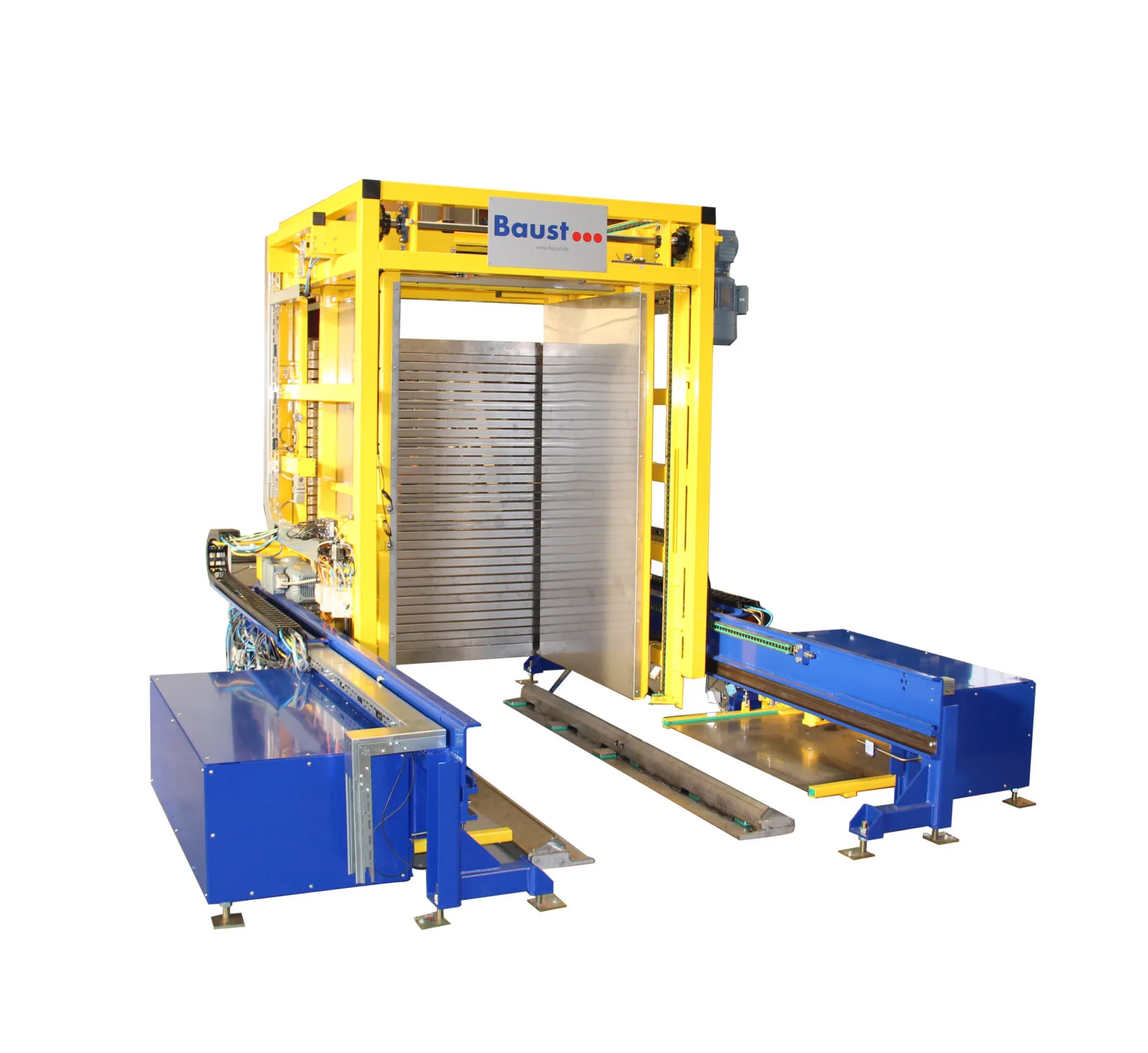

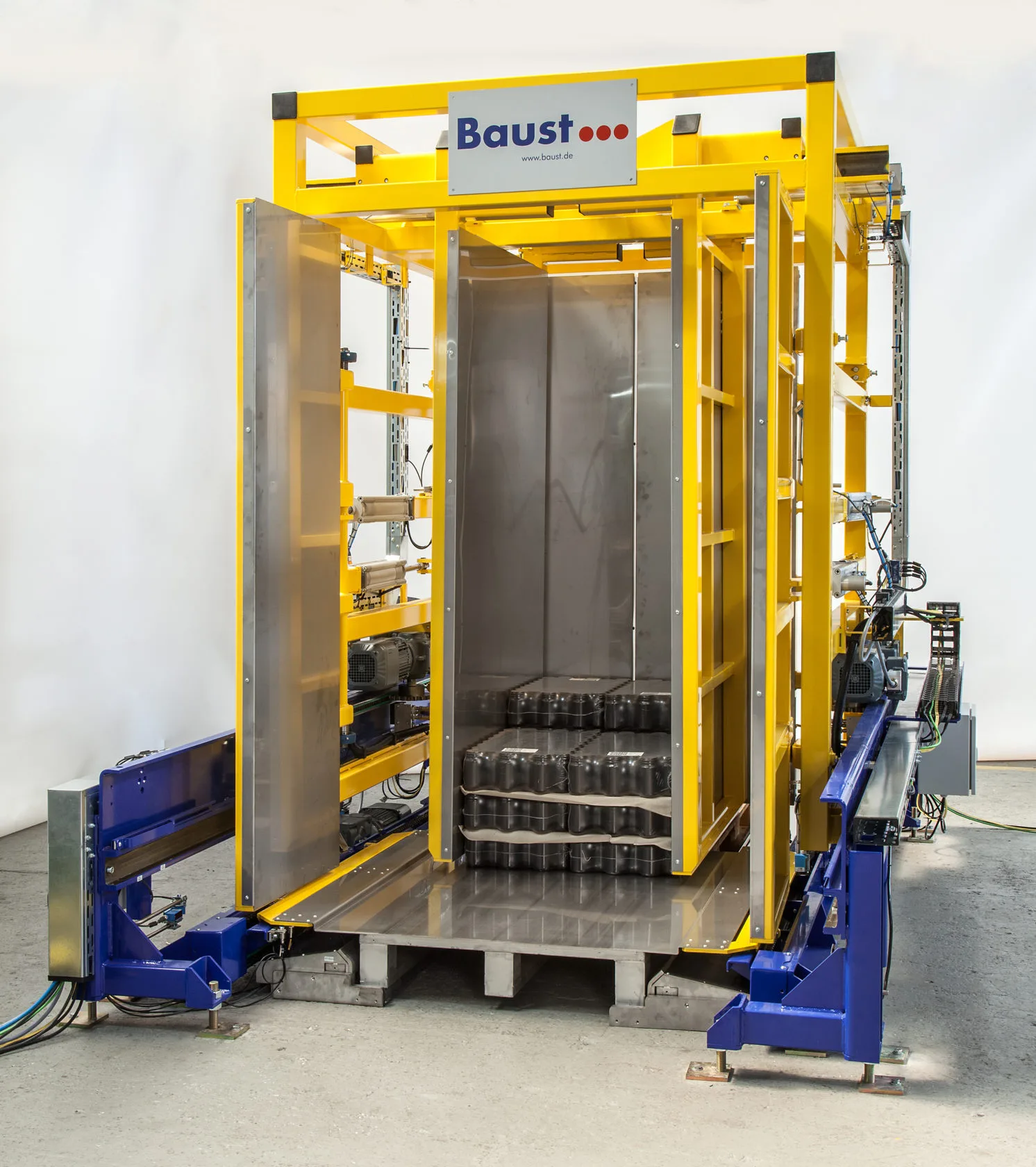

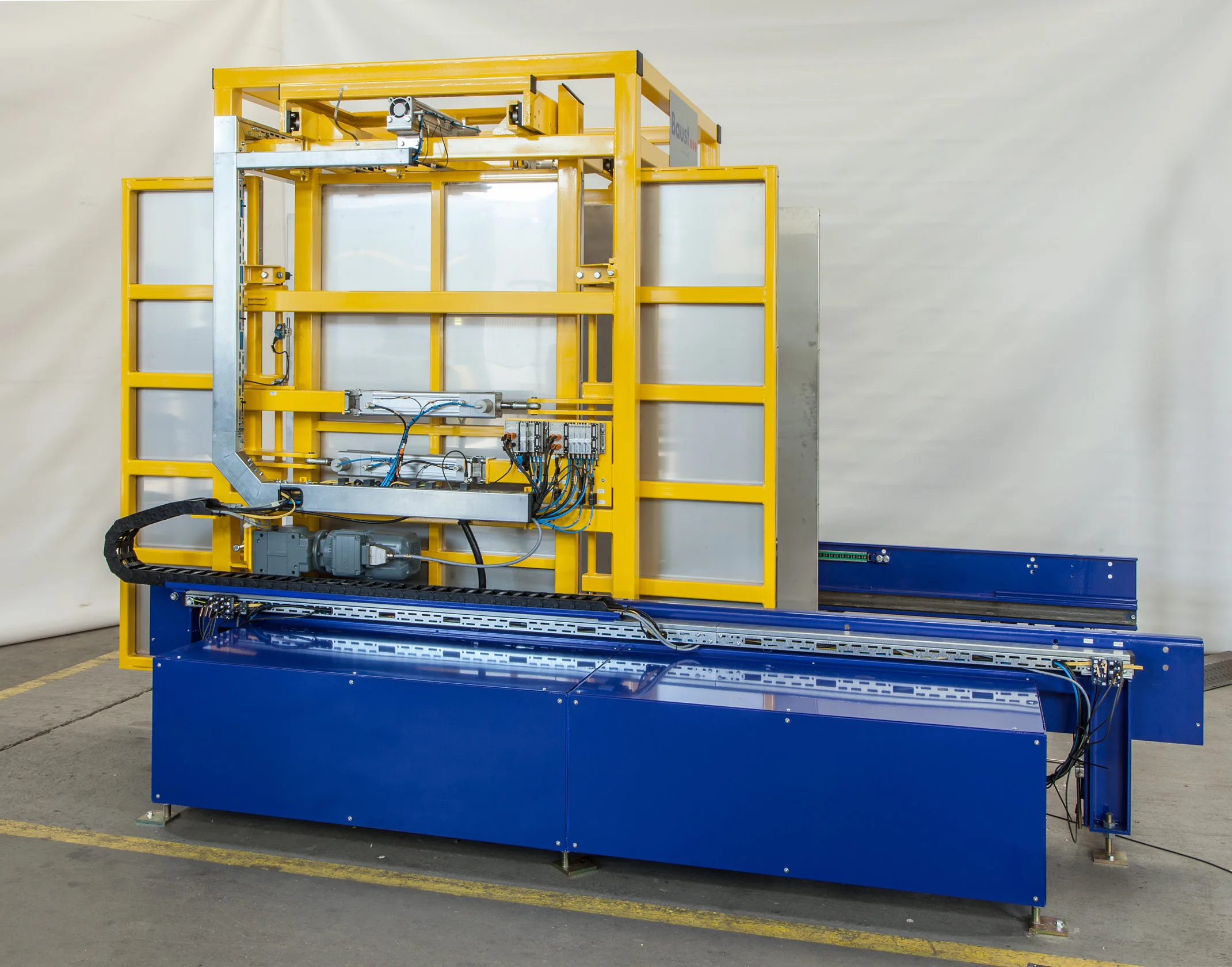

Pallet changer PW 3000

Two-way pallet exchange

The PW 3000 from Baust offers a clever two-way solution. The pallet changer allows loading and unloading from both the front and rear of the machine. This is both convenient and space saving. The PW 3000 can separate internal and external pallets even in demanding hygienic zones.

  • pallet exchange using the pushing method
  • gentle handling of particularly sensitive goods
  • space saving two-way pallet changing system
  • operation at both ends e.g. in sluice system
  • sliding plates and flexible side walls
  • loading/unloading using manual pallet truck
  • performance: 10 – 30 changes/h
  • dimensions (L x W x H in mm): 3400 x 2300 x 2600
  • side walls: pneumatically adjustable
  • front & back wall: manual doors
  • feeding & discharging: manual or electric pallet truck
  • control mode: automatic
  • power supply: 4 kVA – 16A 230/400 V R1/2“, 6 bar
  • machine weight: approx. 2900 kg
Pallet loading
  • total weight up to 1200 kg
  • standard pallet (W x L in mm): 800 – 1000 x 1200
  • max. height incl. pallet: 2000 mm

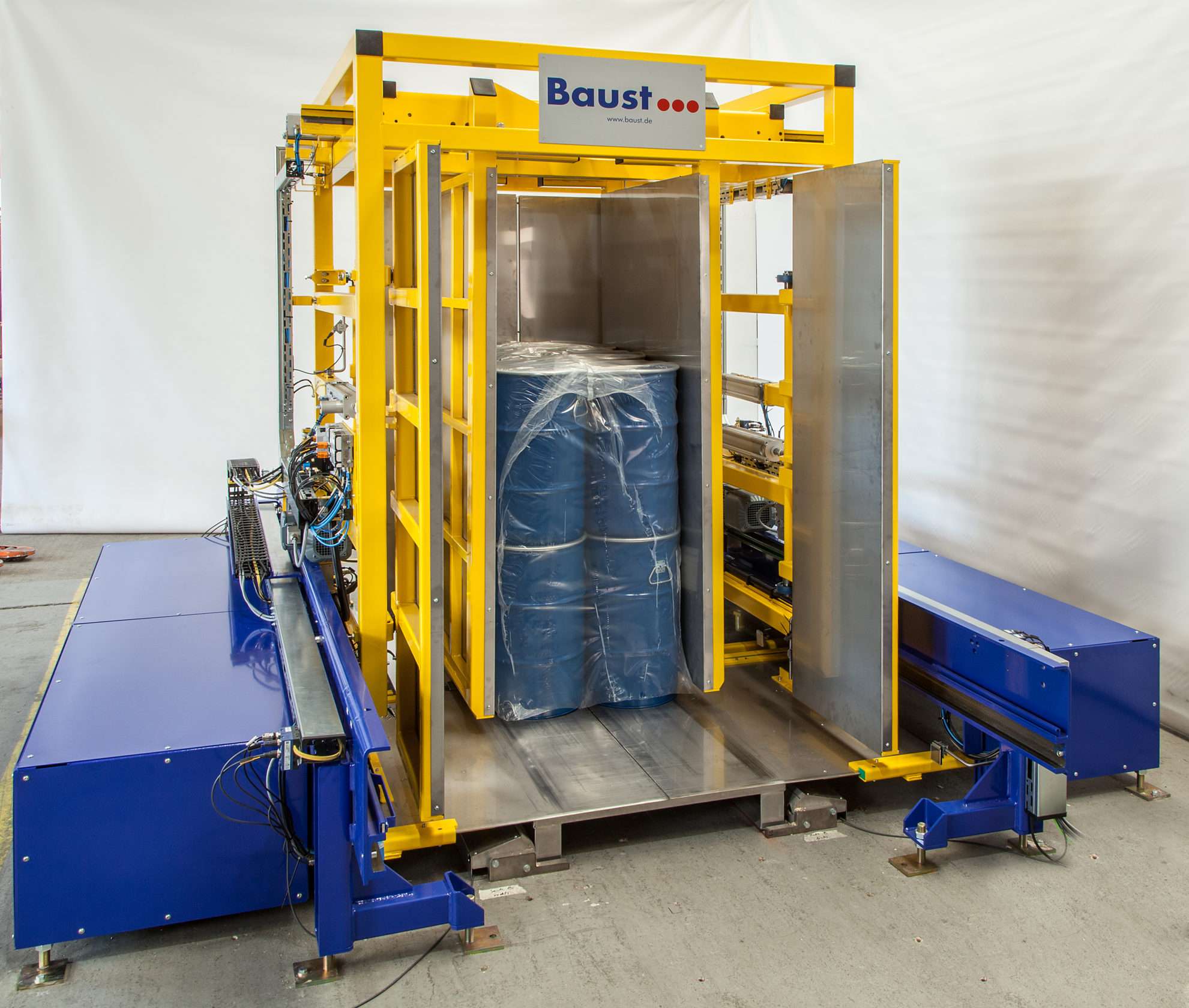

  • goods: e.g. cartons, drums, boxes, bags or bottles
  • overhang tolerance for each side: 50 mm
  • sliding plate unit
  • stainless steel contact parts
  • goods height > 2000 mm
  • pneumatic doors
  • automatic/manual adjustment of pallet guides

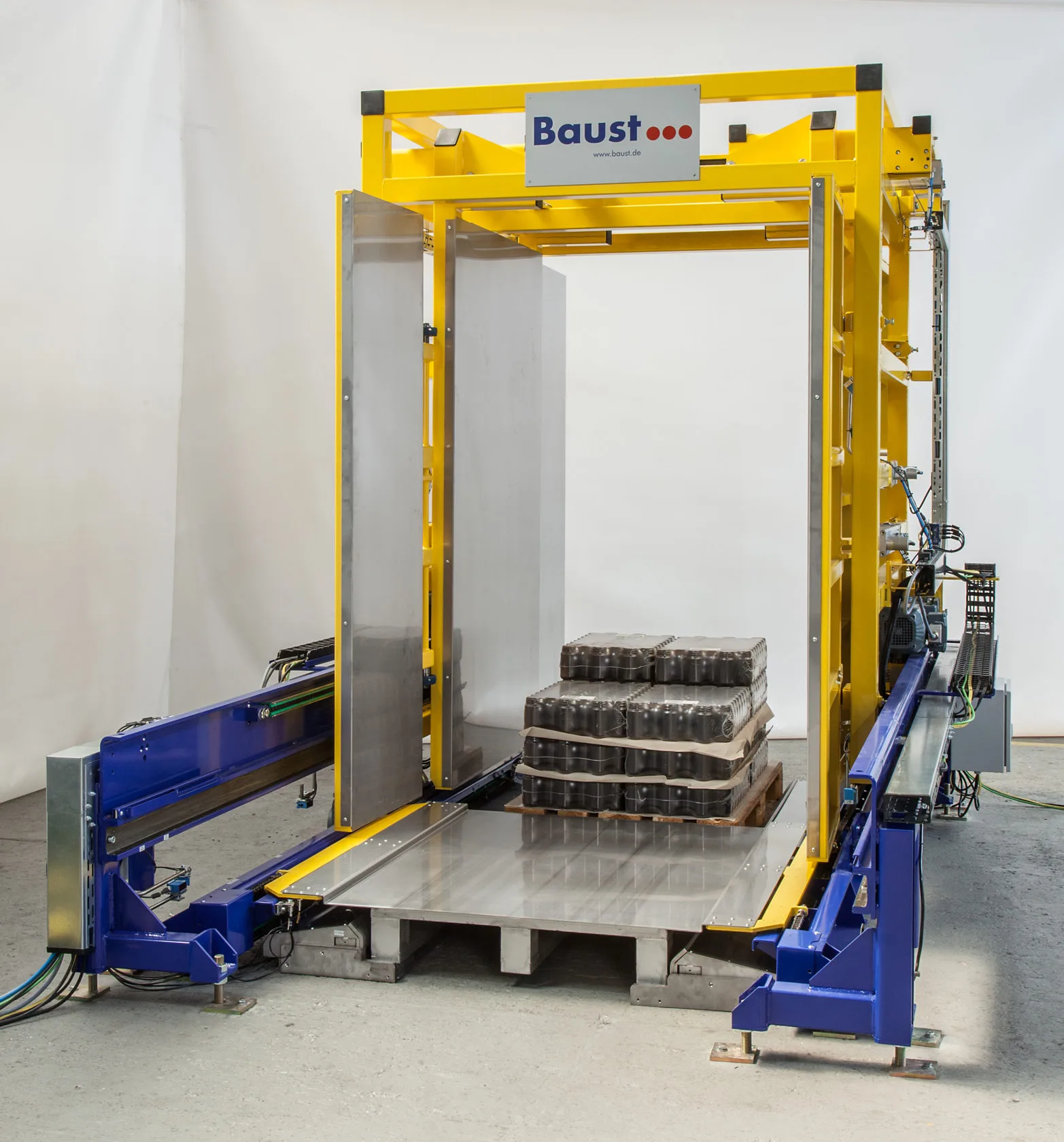

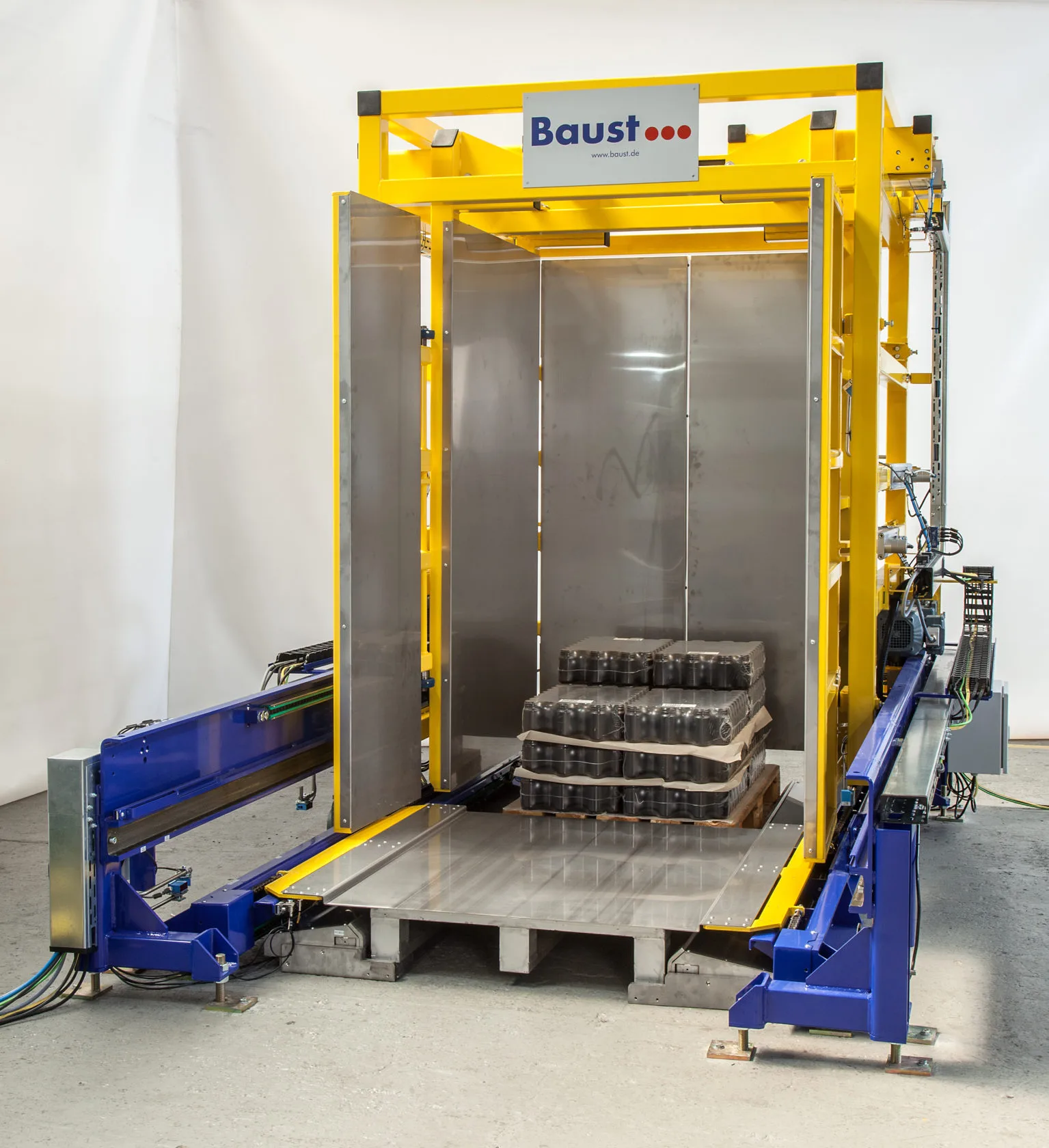

Pallet changing with the PW 3000

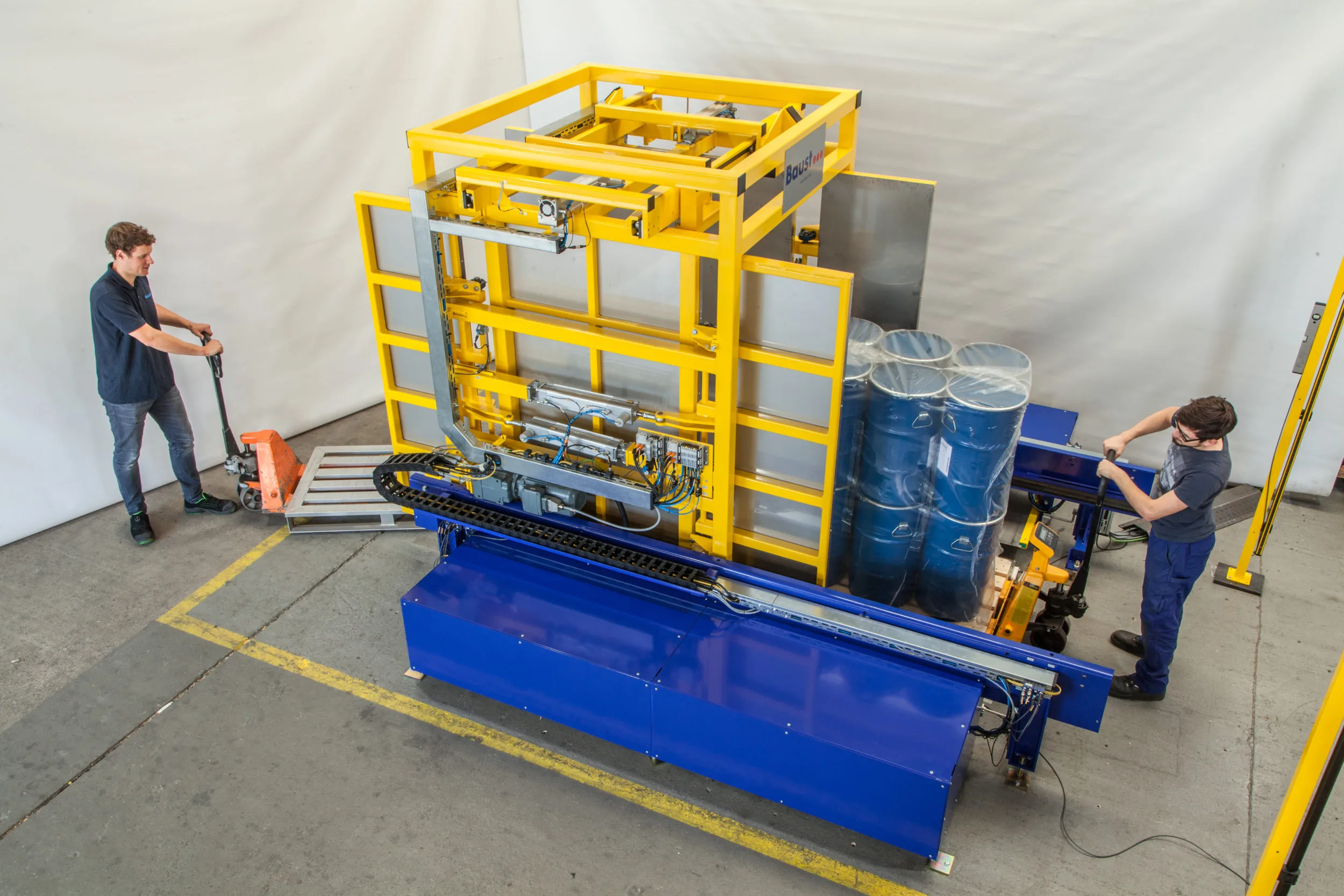

The PW 3000 can be utilized in all those areas where ground level operation in both directions is necessary. It is ideal when working together with a sluice system. The source pallet and target pallet are loaded from opposite sides using a manual pallet truck. The hygiene barrier is located in the middle of the machine. The hinged rear wall closes like a sluice gate on the goods and pushes them safely over to the target pallet. The two-way system facilitates both an internal > external as well as external > internal pallet change. As an optional extra Baust offers lock gates in front of the machine walls. These ensure that a sufficient air flow is guaranteed during the pallet change process and that the pallet changer fulfills the required high standards of hygiene.

We recommend the PW 3000 for between 10 and 30 changes per hour.
