Automatic Pallet changer PW 5000 | Pallet Exchanger

Auto Pallet changing requiring highest hygiene standards

The PW 5000 from Baust can be loaded from both ends and be utilized as a sluice in clean room areas requiring hygienic separation. This makes the pallet changer indispensable, particularly in the food and pharmaceutical industries. The PW 5000 pushing method can exchange damaged or non-hygienically designed pallets easily even when the goods are particularly sensitive and/or there are gaps in the load configuration.

  • ideal for highly sensitive goods
  • can be integrated in conveyor systems
  • pallet change with hygienic separation
  • loadable from both ends, therefore ideal for sluice units

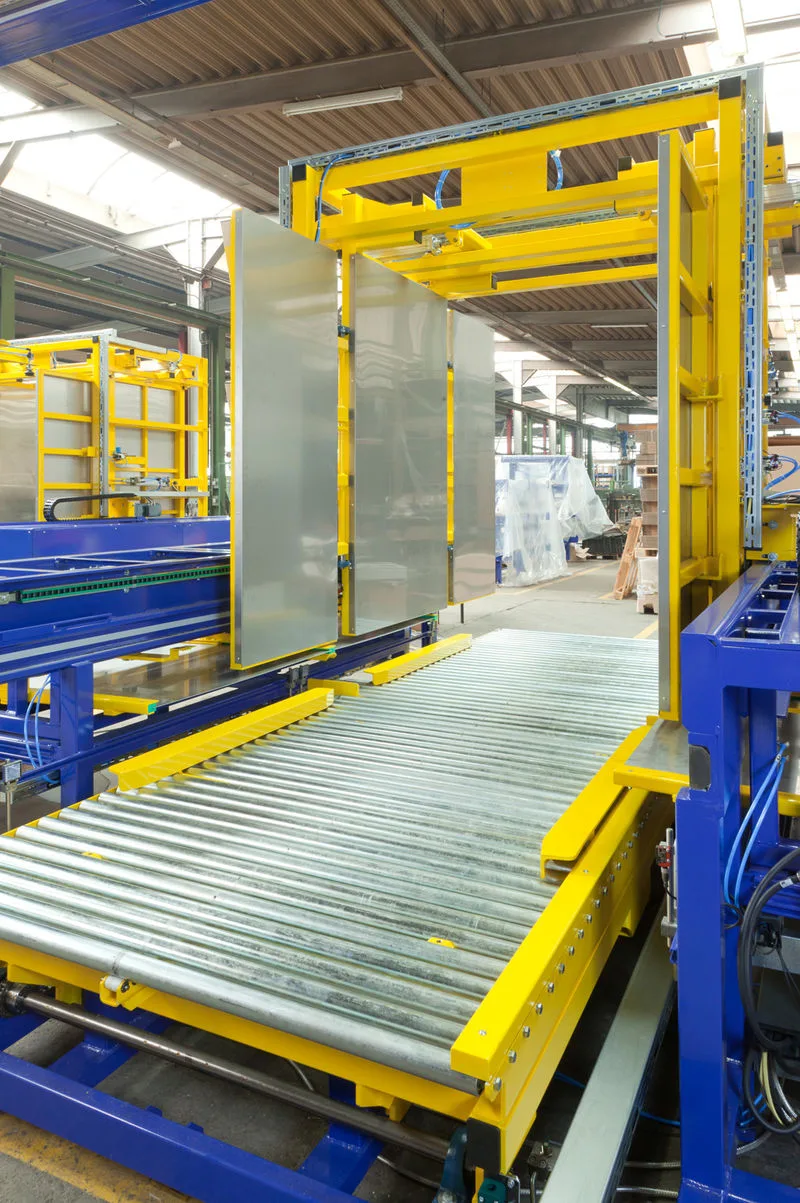

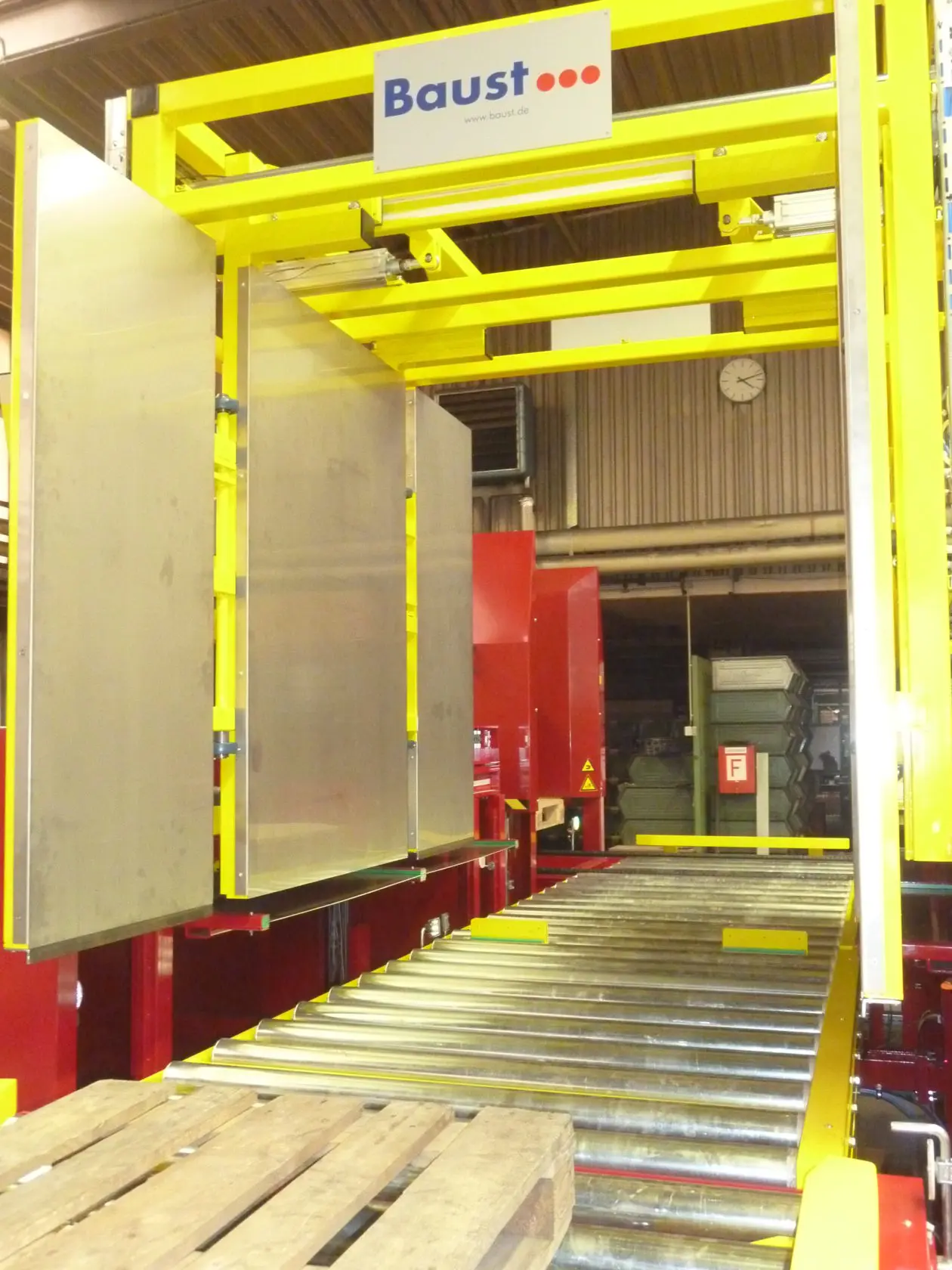

  • sliding plates and flexible side walls
  • loading/unloading using a forklift truck or conveyor line
  • performance: 30 – 40 changes/h
  • dimensions (L x W x H in mm): 3600x3000x3150
  • back & side walls: pneumatically adjustable
  • sliding plates: electrically powered
  • feeding & discharging: fork lift truck/ conveyor systems
  • control mode: automatic
  • power supply: 4 kVA – 16A 230/400 V R1/2“, 6 bar
  • machine weight: approx. 3800 kg
Pallet loading
  • total weight up to 1200 kg
  • standard pallet (W x L in mm): 800 – 1000 x 1200
  • max. height incl. pallet: 2000 mm
  • goods: e.g. cartons, drums, boxes, big bags, bags or bottles
  • overhang tolerance for each side: 50 mm
  • integrated pallet centering
  • stainless steel contact parts
  • goods height > 2000 mm

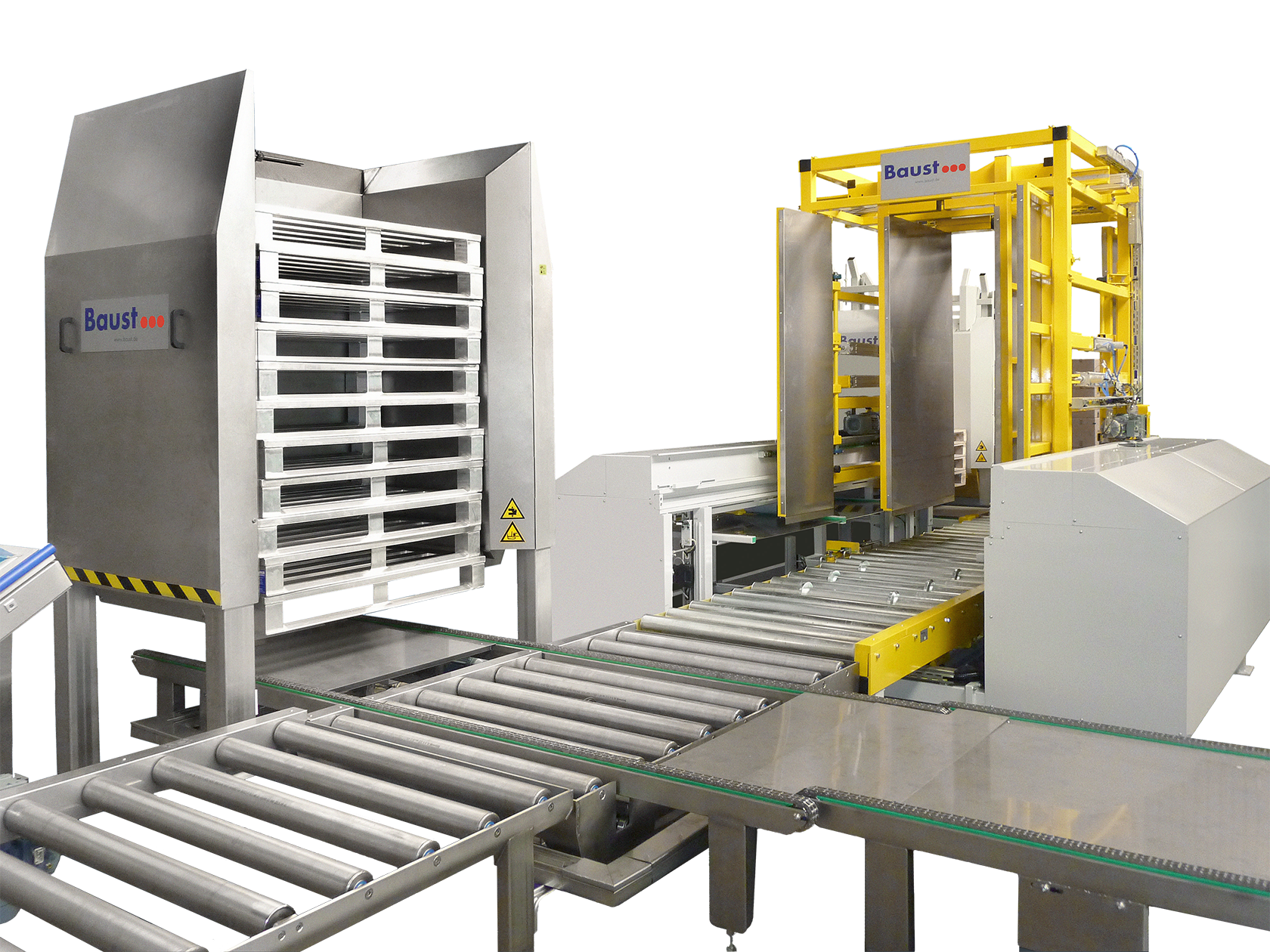

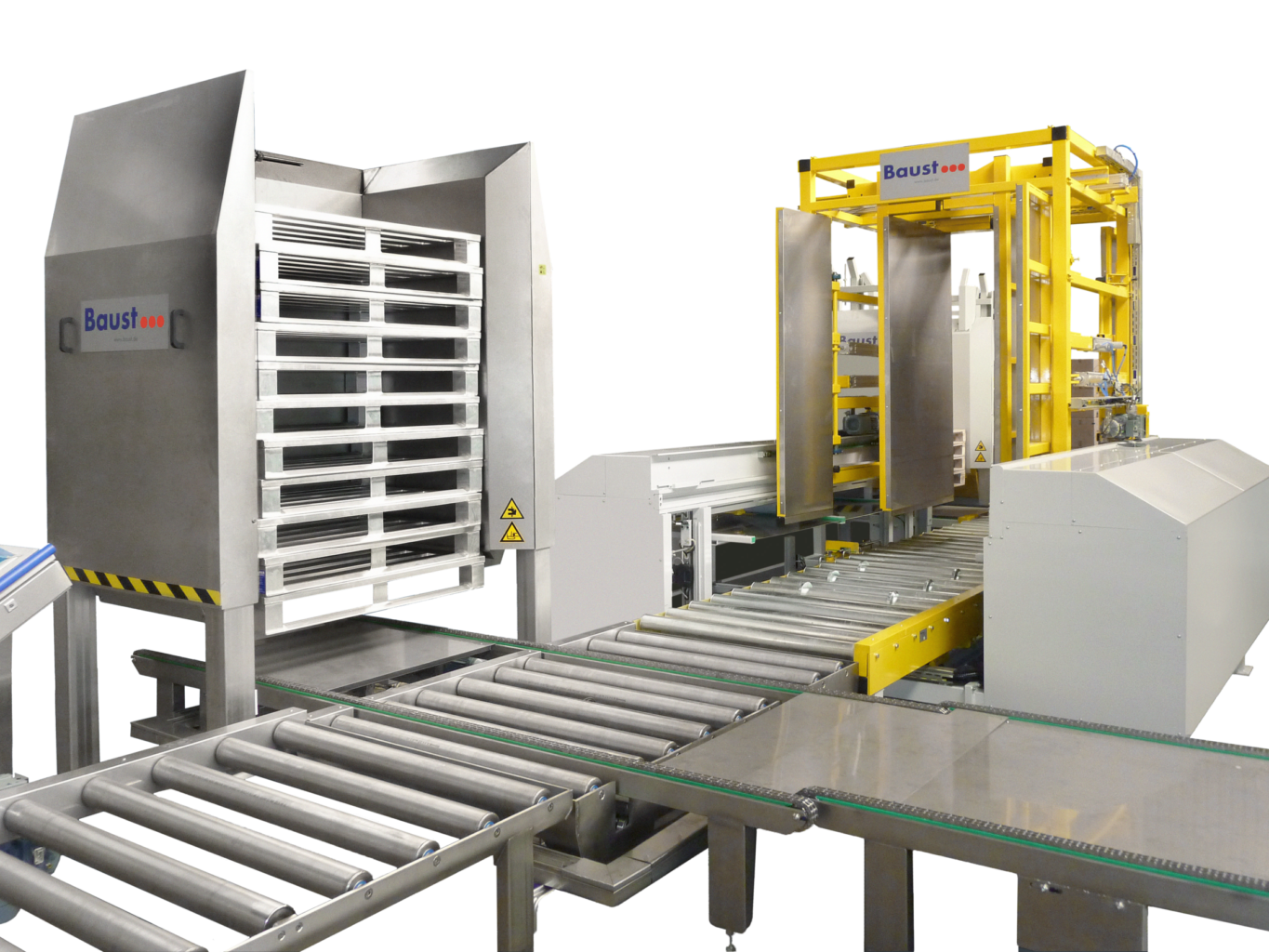

  • automatic pallet magazines

Automatic Pallet changing with the PW 5000 | Exchanger

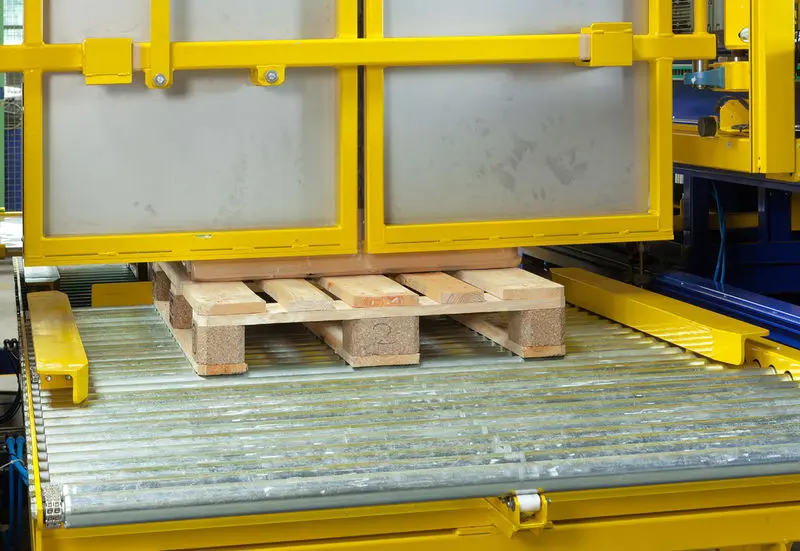

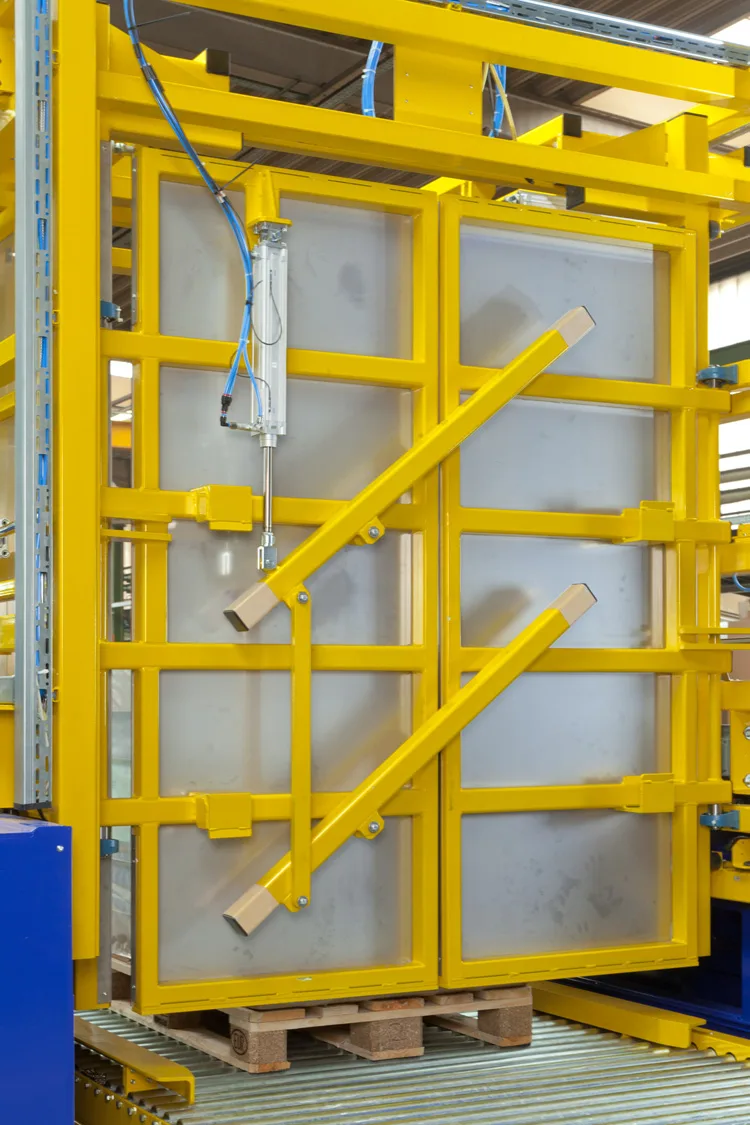

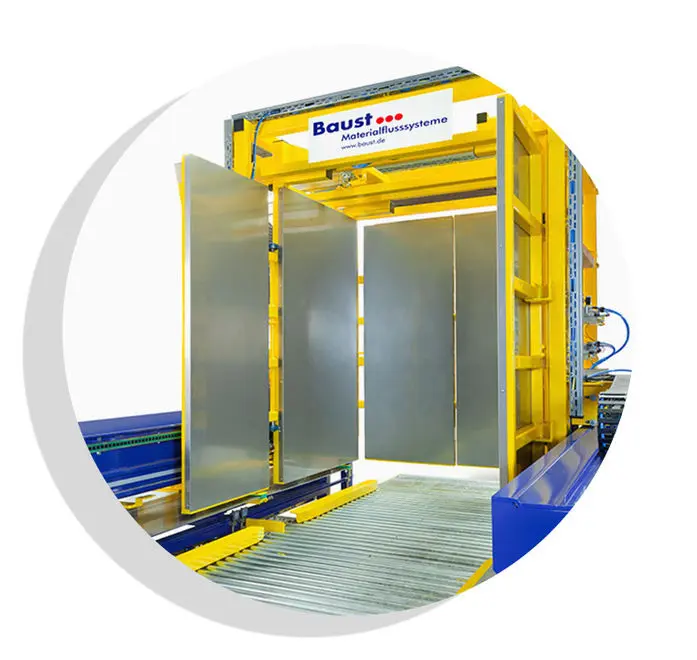

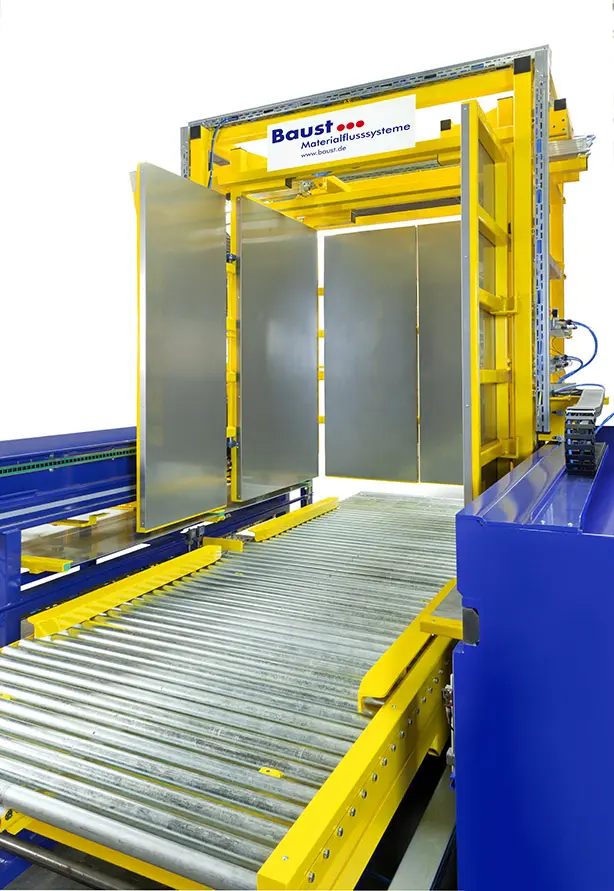

The PW 5000 is deployed in those areas where hygienic separation is necessary. The black and white zones are clearly separated from each other. The front and rear doors open in order to load and unload the pallets. The optional lock gates protect the clean room area from dirt and other external factors. Simultaneously they ensure an optimum air flow. Two conveyor lifting mechanisms combined with 2 pairs of sliding plates and 2 pneumatic flexible side walls ensure a perfect and gentle transfer from the source pallet to the slightly lower positioned target pallet. The hygienic pallet changer can be integrated into other conveyor technology. Pallet Exchanger: contact us for more information!

We recommend the PW 5000 for between 30 and 40 changes per hour.
