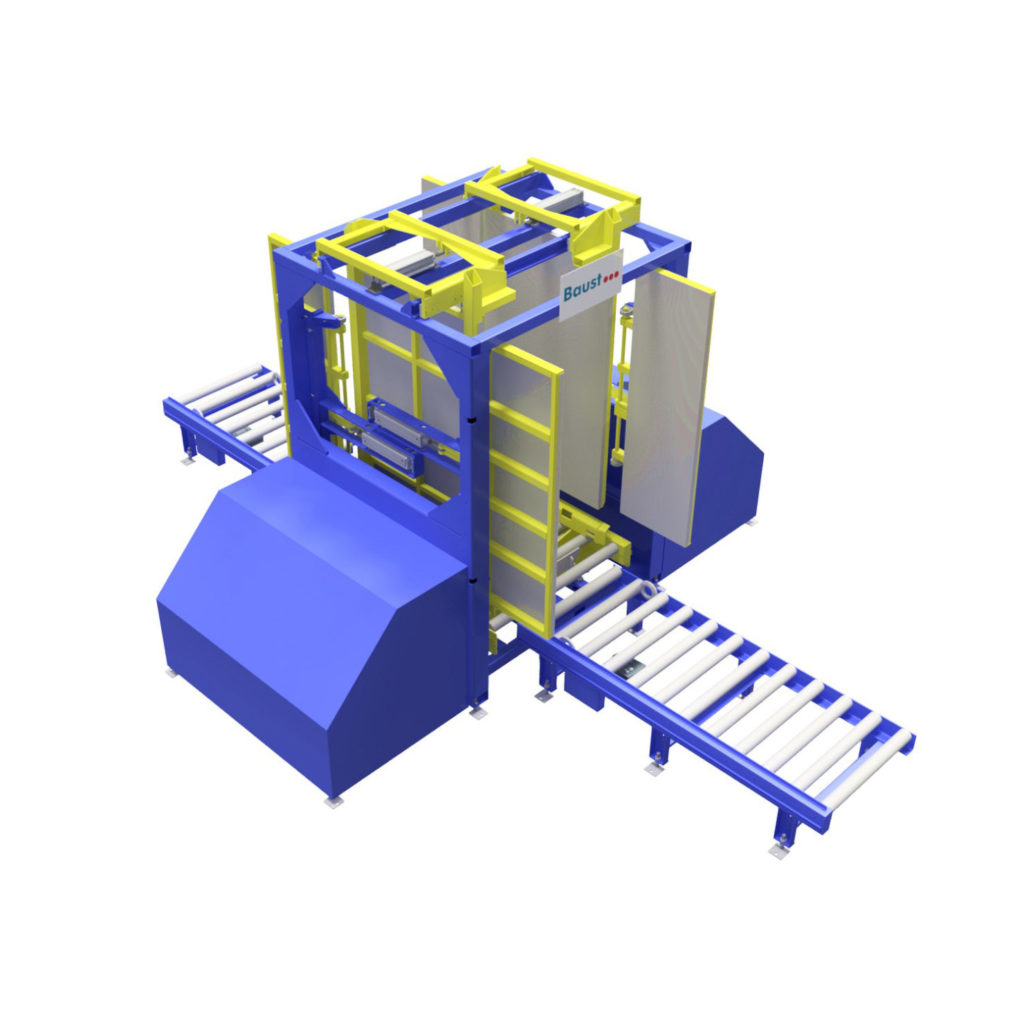

Centering station AZ 4000

High performance centering from 4 sides

The centering station AZ 4000 aligns the load fully automatically and safely from all four sides. The integration into the conveyor line ensures high throughput rates.

Specifications
  • performance: 90 – 100 cycles/h
  • control mode: automatic control
  • loading and unloading: forklift/conveying line
  • clamping walls: electrically driven
  • power supply: 4 kVA – 16A 230/400 V
  • dimensions (L x W x H in mm): 5500 x 4330 x 3500
Pallet loading
  • total weight up to 1000 kg
  • standard pallet (W x L in mm): 800 x 1200
  • height incl. pallet: 2000 mm
  • goods: e.g. cardboard boxes, boxes, Big-Bags, bottles or pallet stacks
  • overhang tolerance for each side: +- 50 mm
Options
  • other pallet widths
  • height of goods > 2000 mm
  • load > 1000 kg

High performance centering from 4 sides

The centering station AZ 4000 aligns the load fully automatically and safely from all four sides. The integration into the conveyor line ensures high throughput rates.

Centering of loads stacked on pallets or complete stacks of empty pallets is always necessary if irregularities in the layer pattern or packing scheme have occurred during palletizing or transport. A low tolerance in stacking and outer contours is an important prerequisite for a safe and trouble-free process, especially in automated further processing and storage. In the fully automatic centering system AZ 4000, the goods are aligned from all four sides. The pallet moves into the machine and is positioned. The two side walls and both door systems close and compress the load from four sides. The pallet is conveyed through the machine to the rear while the next pallet is driven in at the front.

In this way, up to 100 cycles in one hour are possible. A safety fence with access control ensures the required safety.
